DESCRIPTION

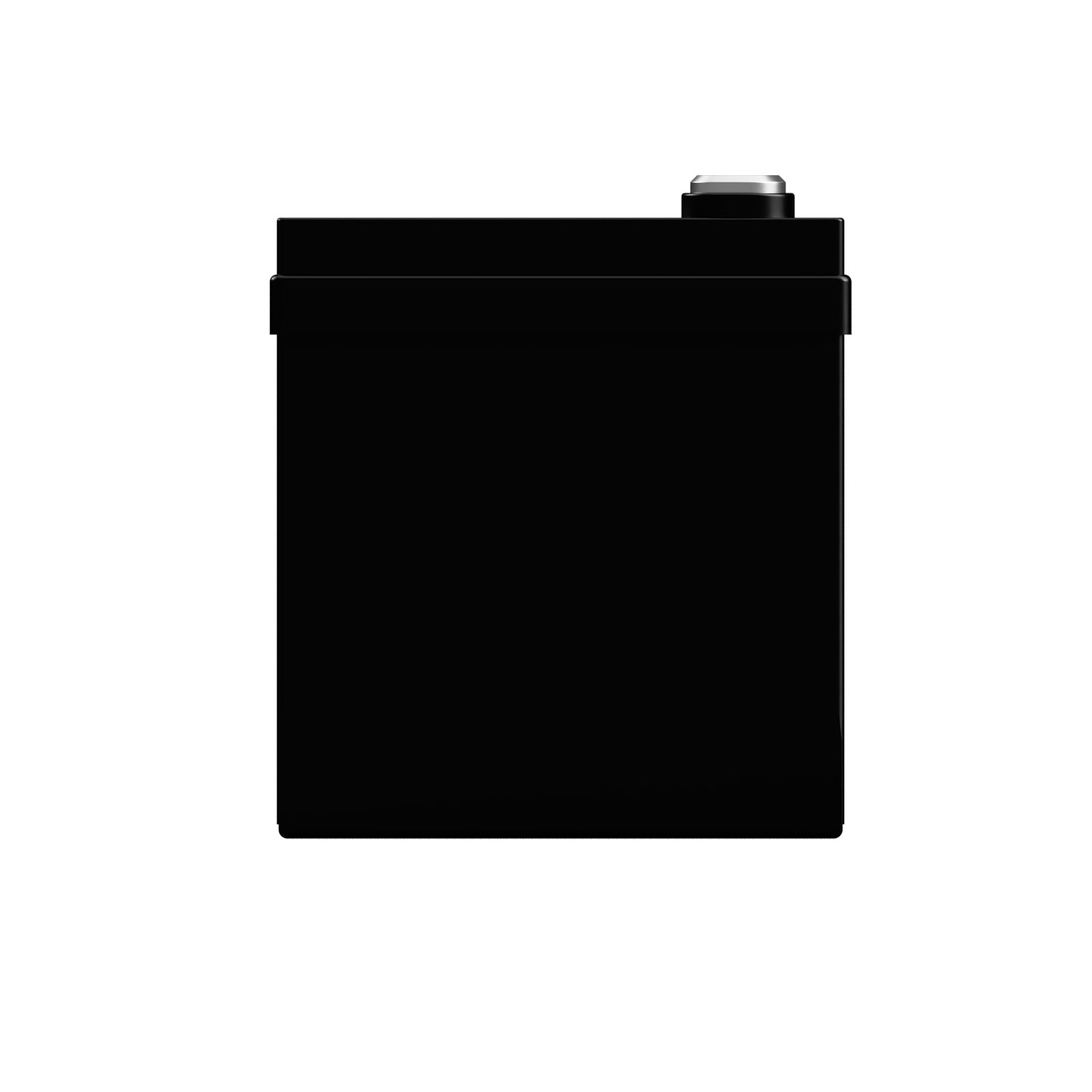

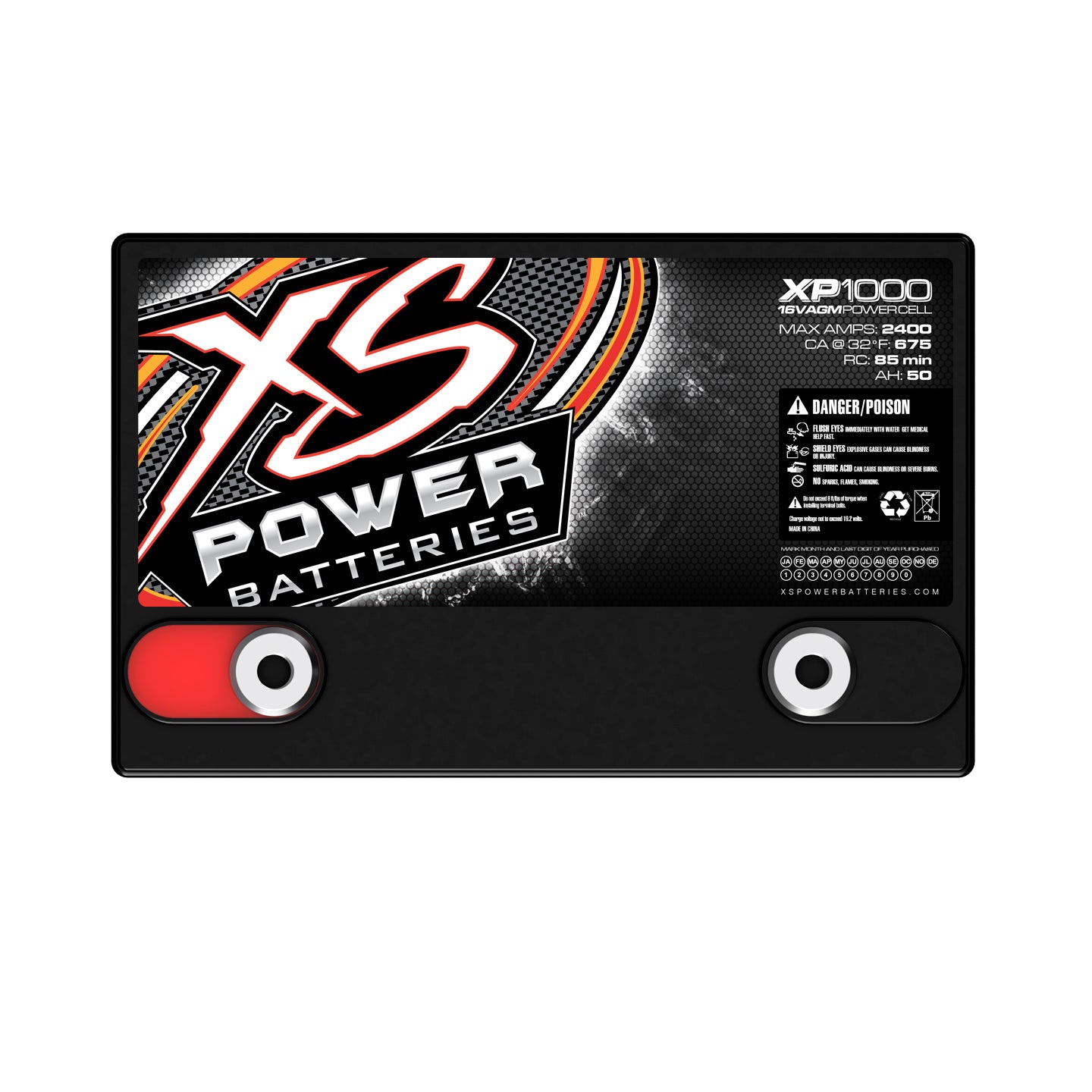

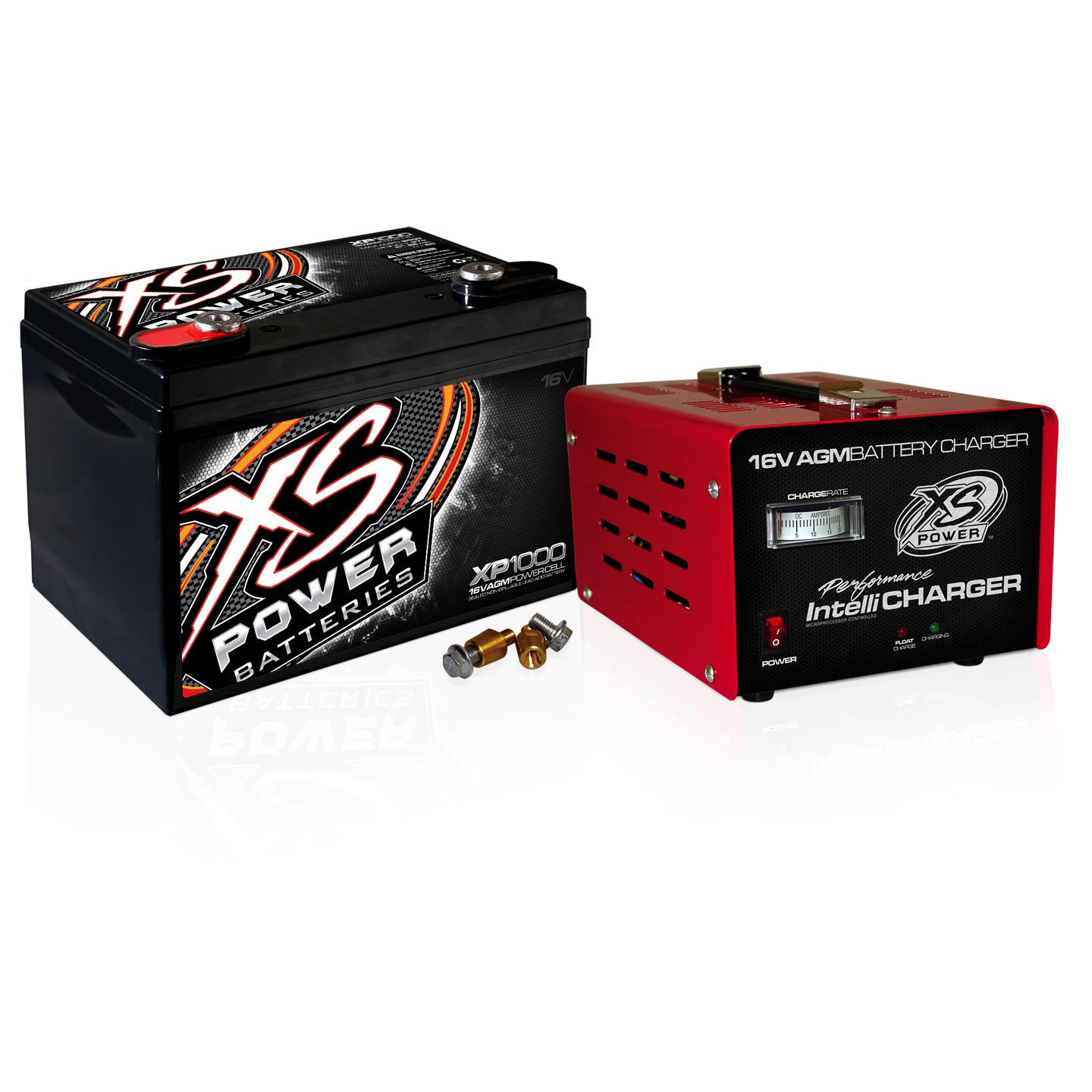

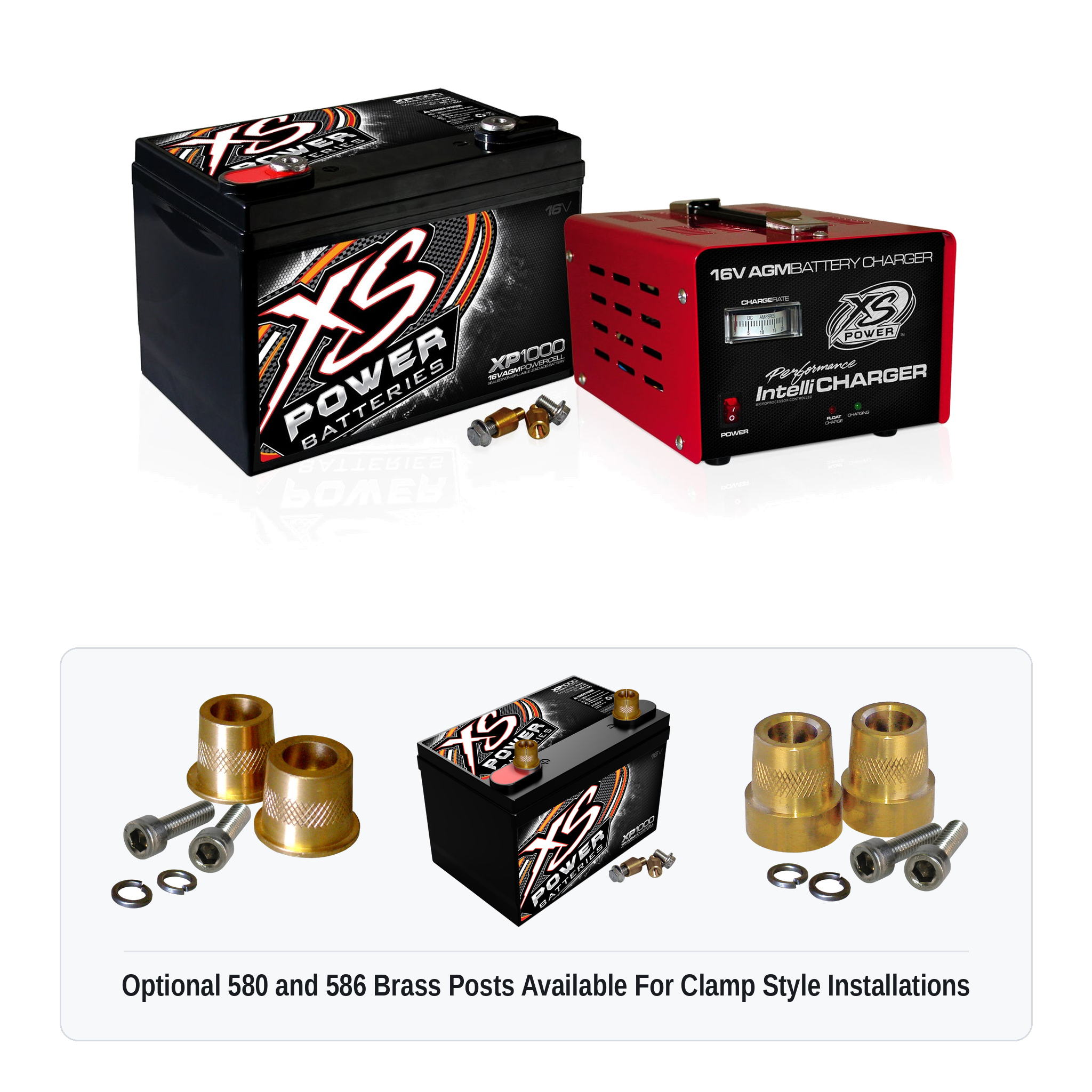

XP1000 16V Battery and 1004 16V, 20A IntelliCharger Combo
Weight Lbs. – 65.1
Weight Kgs. - 28.5
Length – 17.2 in
Height – 15.4 in
Width – 11.5 in
Max Amps – 2,400A
CA – 675
CCA – 605
Ah – 50
RC – 85
575 with M10 Terminal Hardware Included
HF1615 16V, 15A High Frequency AGM IntelliCharger
Weight Lbs. – 14.1
Weight Kgs. – 6.44
Length – 9.675 in
Height – 5.675 in
Width – 7.25 in
CONNECTIONS
AC Input Connections : 5.0’ (1.5 m) AWG 18
DC Output Connections : 6.0’ (1.8m) AWG 10
AC INPUT SPECIFICATIONS
AC Input Voltage : 100-120 VAC, 60 Hz AC Input Current : 8A RMS fuse protected
